Forged Grade 6 screw pin shackles with the Red Pin®, fatigue rated for safety and available in capacities up to 55 tonnes

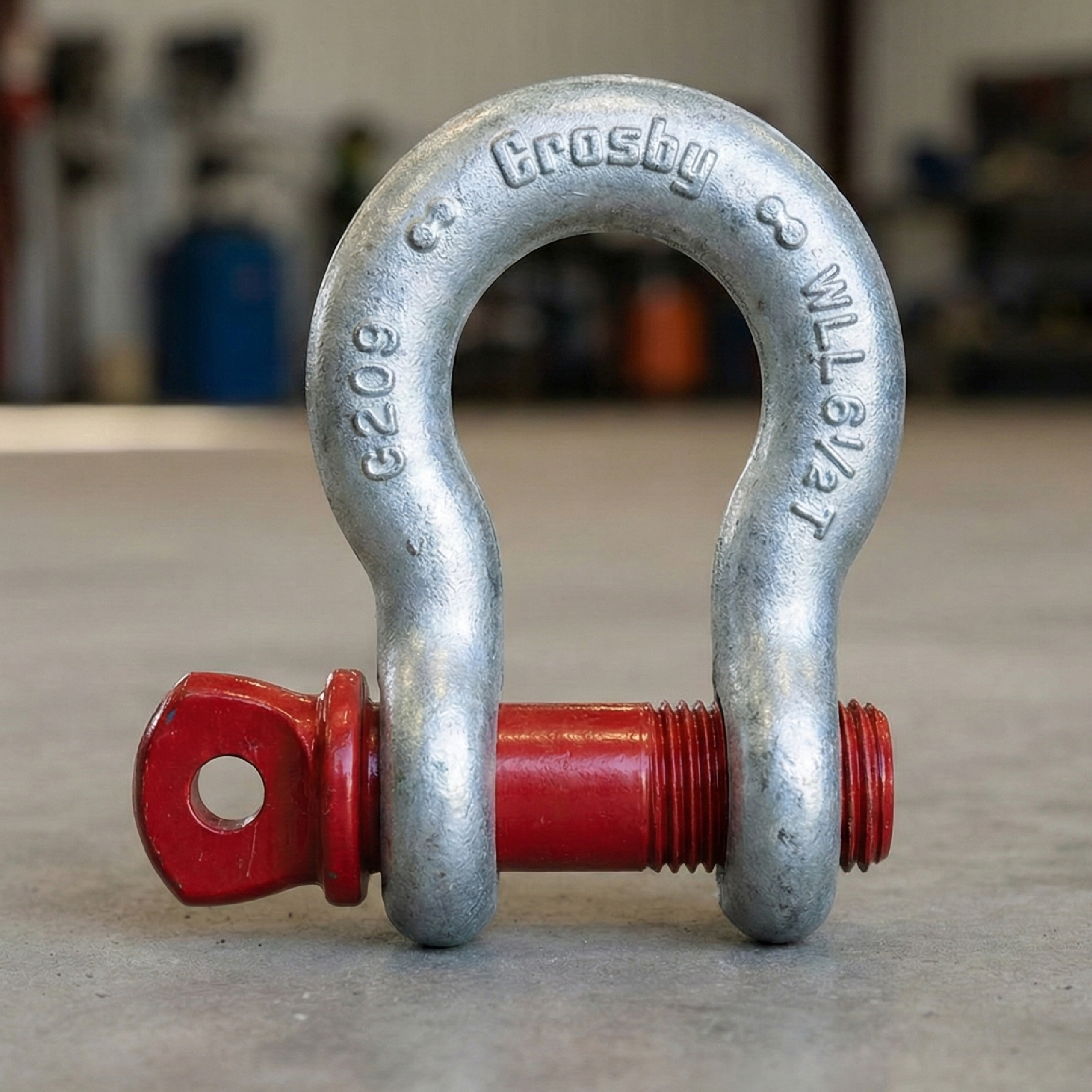

Crosby Shackle G209 (Screw Pin Anchor Shackles) are the industry benchmark for reliability, featuring the authentic Red Pin® as a mark of genuine quality. These shackles are forged, quenched, and tempered with alloy pins to meet the strict performance requirements of Grade 6 shackles.
Engineered for durability, they are fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit and are permanently marked with load limits and grade information. They are designed to operate in extreme environments ranging from -40°C to 204°C.
Standards Complied:
ASME B30.26
Federal Specification RR-C-271H (Type IVA, Grade A, Class 2)
ABS 2016 Steel Vessel Rules
Available in a comprehensive range of sizes:
Small Sizes: 3/16" to 3/8" (Mechanically Galvanized)
Standard/Heavy Sizes: 7/16" to 2-1/2" (Hot-dip Galvanized or Self-Colored)
Forged, Quenched & Tempered with alloy pins.Forged, Quenched & Tempered with alloy pins.
Tested to 20,000 cycles at 1.5x Working Load Limit.
Approved for use at -40° C (-40° F) to 204° C (400° F).
Type Approval according to ABS and Federal Specifications.
Working Load Limit and Grade permanently shown on every shackle.
