Forged, fatigue-rated bolt-type anchor shackles with the signature Red Pin®, available in capacities up to 150 tonnes and meeting ASME B30.26 standards.

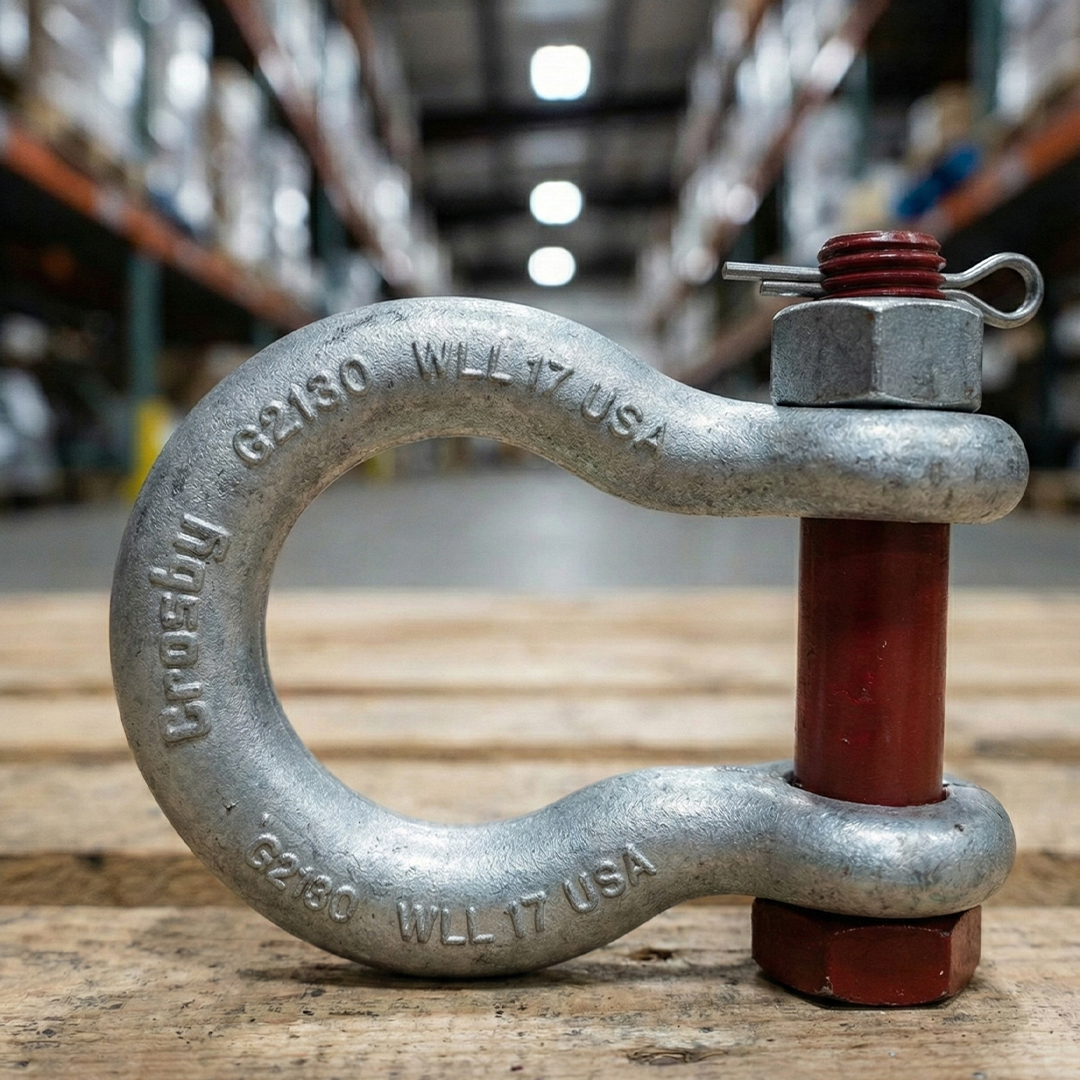

Crosby Shackle G2130 (Bolt Type Anchor Shackles) are the premium standard for rigging safety, distinguished by their signature Red Pin®. Forged, quenched, and tempered with alloy bolts, these shackles are engineered for superior fatigue resistance and durability in extreme conditions.
Permanently marked with the Working Load Limit (WLL) and Grade 6, these shackles are fatigue rated to 20,000 cycles at 1-1/2 times the WLL and are approved for use in temperatures ranging from -40°C to 204°C. Larger sizes (85t+) are individually proof tested to 2.0 times the WLL.
Standards Complied:
ASME B30.26
Federal Specification RR-C-271H (Type IVA, Grade A, Class 3)
ABS 2016 Steel Vessel Rules
DNV 2.7-1 & EN13889 (Available for sizes 3.25t - 25t)
Available in a wide range of sizes with various certifications available on request:
Small Bore: 3/16" to 3/8" (Mechanically Galvanized)
Standard Industrial: 1/2" to 2-1/2" (Hot-dip Galvanized or Self Colored)
Heavy Lift: 85t, 120t, and 150t sizes (Dimetcoted bolts)
Forged, Quenched & Tempered bows with alloy bolts.
Tested to 20,000 cycles at 1.5x Working Load Limit.
Operational from -40° C (-40° F) to 204° C (400° F).
Meets Charpy requirements of 42 Joules at -20°C.
Type Approval according to ABS and Federal Specifications.
